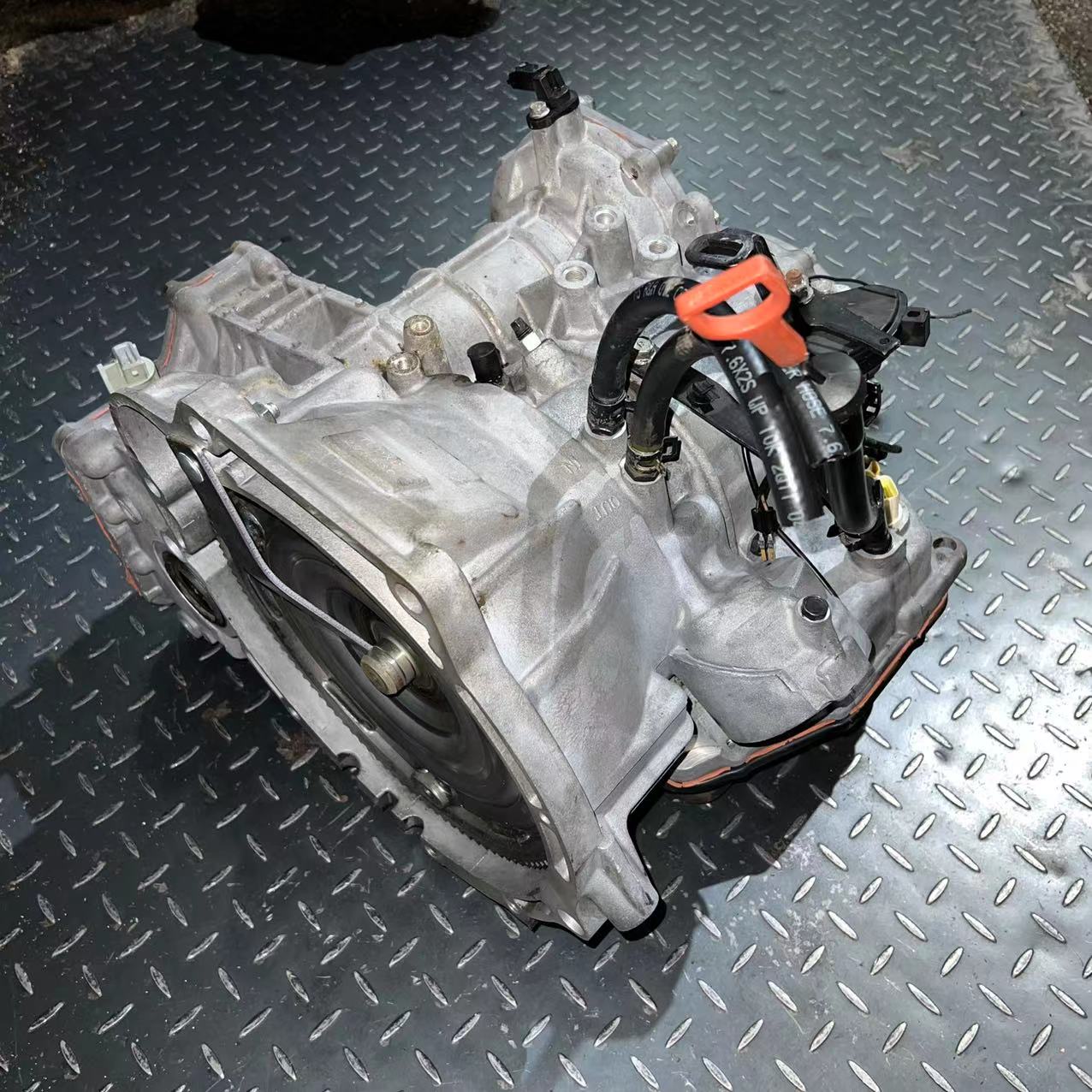

Used Hyundai A4AF3 4-Speed Automatic Transmission FWD Gearbox 1.5L 1.6L

Used Hyundai A4AF3 4-Speed Automatic Transmission FWD Gearbox 1.5L 1.6L

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

Used Hyundai A4AF3 4‑Speed Automatic Transmission (FWD Transverse)

Brand: Hyundai

Model: A4AF3

Type: 4‑speed electronic‑controlled automatic transaxle, FWD transverse

Production: 1999–2005

Torque Capacity: up to 150Nm

Weight: approx. 62kg (dry)

Gear Ratios:

1st: 2.826
2nd: 1.603
3rd: 1.000
4th: 0.712
Reverse: 2.385
Final Drive Ratio: 4.041
ATF Spec: Hyundai SP‑II / SP‑III
Full Oil Capacity: approx. 5.0L
Condition: Original used, low mileage, full bench pressure & load tested

Compatible Engines

Hyundai Alpha 1.5L G4EK (90HP / 132Nm)
Hyundai Alpha 1.6L G4ED (105HP / 145Nm)

Compatible Vehicles (1999–2005 FWD 1.5L/1.6L)

Hyundai Accent / Excel / Verna (LC) 1.5L/1.6L 1999–2005
Hyundai Getz (TB) 1.6L 2002–2005

No comment

Previous : 81-40 Automatic Transmission for Buick Excelle 1.6 Model F16D3 Engine Original Disassembly Gear Boxes Next : Used Hyundai Kia A4CF0 4-Speed Automatic Transmission FWD Gearbox 1.4L

Product Detail

Used Hyundai A4AF3 4‑Speed Automatic Transmission (FWD Transverse)

Brand: Hyundai

Model: A4AF3

Type: 4‑speed electronic‑controlled automatic transaxle, FWD transverse

Production: 1999–2005

Torque Capacity: up to 150Nm

Weight: approx. 62kg (dry)

Gear Ratios:

1st: 2.826
2nd: 1.603
3rd: 1.000
4th: 0.712
Reverse: 2.385
Final Drive Ratio: 4.041
ATF Spec: Hyundai SP‑II / SP‑III
Full Oil Capacity: approx. 5.0L
Condition: Original used, low mileage, full bench pressure & load tested

Compatible Engines

Hyundai Alpha 1.5L G4EK (90HP / 132Nm)
Hyundai Alpha 1.6L G4ED (105HP / 145Nm)

Compatible Vehicles (1999–2005 FWD 1.5L/1.6L)

Hyundai Accent / Excel / Verna (LC) 1.5L/1.6L 1999–2005
Hyundai Getz (TB) 1.6L 2002–2005
